Name: Belden 8719 Multi-Conductor - Single-Pair Cable 16/1P TC PE/PVC SHLD
Brand: Belden
SKU: 8719
Price: 3.54 USD
Availability: InStock

Description

Multi-Conductor - Single-Pair Cable

16 AWG stranded (19x29) TC conductors
polyethylene insulation
twisted pair
overall Beldfoil® shield (100% coverage)
18 AWG stranded TC drain wire
PVC jacket

Electronic, 2 Conductor 16AWG (19x29) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CM

Click here for Belden 8719 Technical Data Sheet.

For additional offerings, we invite you to take the time to check out our complete collection of Belden cable at ProWireandCable.com now.

Specifications

Brand:

Belden

AWG:

Capacitance:

Color:

Chrome

Number of Conductors:

Conductor type:

16(19X29) TC

CSA:

Insulation:

POLYETHYLENE

Jacket type:

PVC UL 20253

Manufacturer:

Belden

Manufacturers item number:

8719

NEC:

CM/CL2

Outside Diameter:

0.313

Pairs:

Shield 1 type:

100% BELDFOIL

Temperature:

80 DEGREES CENTIGRADE (176 F)

UL:

AWM

Voltage rating:

600V

Weight per Foot:

0.04700

Manufacturer Equivalents

Alpha Wire item:

2471

Belden item:

8719 0601000

General Cable item:

C2536A

Omni Cable item:

BEL8719

Wirexpress item:

B8719

Omni item:

BEL8719

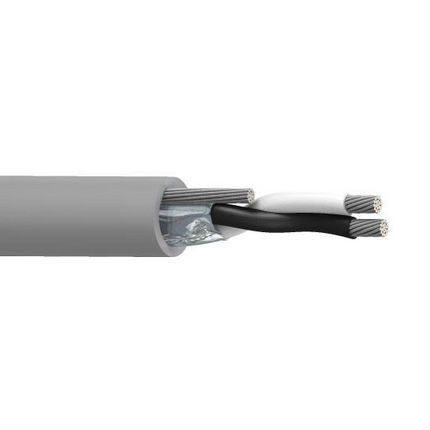

Belden 8762 Multi-Conductor - Single-Pair Cable 20/1P TC PE/PVC SHLD
